CALORIENA – CLAMP ON ULTRASONIC FLOW METER

CALORIENA – CLAMP ON ULTRASONIC FLOW METER

CALORIENA – CLAMP ON ULTRASONIC FLOW METER

FAST & EASY INSTALLATION

• Portable and battery operated, installation is simple. Just clamp the device onto the pipe with only 1 screw or Velcro straps. Calibration and adjustments are fully automated. There is no need for engineers.

ULTRA HIGH RESOLUTIONS

• Even more accurate with minute flows (From 0.001m/sec at >DN200, 0.6% for RD at >0.5m/sec.

Compact Ex d enclosure

• VM series switches combine Ex d approvals with a compact terminal enclosure making them ideal for OEM applications.

DYNAMIC AUTO TUNING

• Dynamic Auto-tuning enables the user to calibrate without stopping the flow. The Controllers are able to automatically adjust or cancel zero offsetting, making the Installation even easier.

AUTO WALL THICKNESS DETECTION

• This feature will let you know the pipe wall thickness, when thickness is not known or cannot be measured due to corrosion.

EXTREMELY COMPACT

V1-Type:       V2-Type
H 28.0mm   H 28.0mm
W 25.5mm   W 25.5mm
L 148.0mm   L 250.0mm

MODBUS

• Besides storing data onto a memory card, there is as well an option to monitor with a computer by directly connecting it to the controller.

ENERGY MANAGEMENT
The Caloriena is capable of measuring temperature. Therefore, it can also be utilized as a calorimeter. Energy consumption is a large issue in recent years. The Caloriena makes it easy to manage used energy or to organize energy conservation plans of even larger buildings.

MONITORING SYSTEMS IN VARIOUS FIELDS
Perhaps the most important characteristic of the Caloriena is how it attaches to pipelines without any holes or touching the fluid in question. This makes it the most sanitary, accurate and user-friendly ultrasonic flow meter on the market.

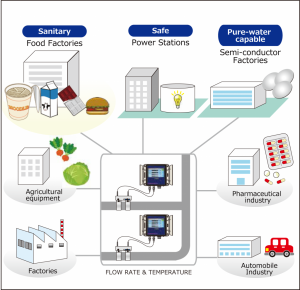

The Caloriena can be used in any monitoring systems in almost any industry. We show here an example of it being used in the food industry—to monitor the amount of product (such as milk), in a power station —to monitor the heat inside of important energy plants, or in a semi-conductor factory to measure ultra pure water. In food & harmaceutical industries, the role of the Caloriena is highly important since it is highly sanitary. Because the Caloriena externally monitored there are absolutely no worries of contamination.

The Caloriena is able to monitor the temperature of the fluid simultaneously, it is also ideal to maintain a low temperature in food products.When creating energy, many dangerous chemical reactions are needed. These reactions often create heat and result in safety issues. The Caloriena can measure both flow andtemperature of the reaction in question without exposing the environment and society to such dangerous chemicals.

Semi-conductor factories often need to measure and use ultra pure water, which is nearly impossible to do with an electromagnetic flow meter. However, it is not so difficult with the Caloriena, since it is capable of measuring ultra pure water. In addition to the above qualities of the Caloriena, it is also able to measure flow rate and temperature accurately even in a curved portion of a pipe. Since most industries need to have curved, short pipes, the Caloriena is ideal for various industries.
